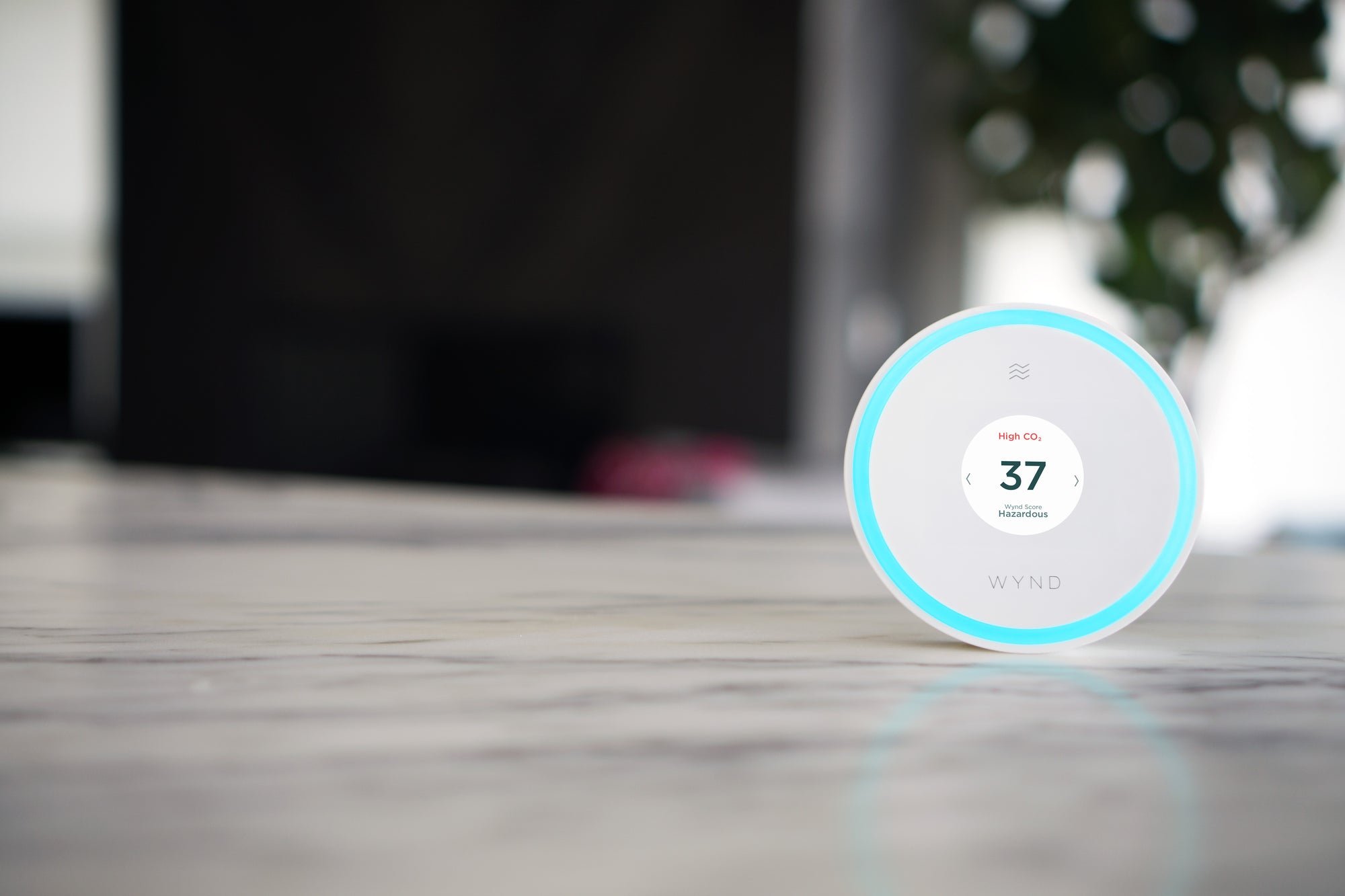

WYND Halo Indoor Air Quality Monitor

WYND Halo Indoor Air Quality (IAQ) Monitor is the most comprehensive air quality monitor for your indoor space, detecting up to 11 parameters.

With our building grade sensors and proprietary light imaging technology, the WYND Halo can detect PM1.0, PM2.5, PM4.0, PM10, Carbon Dioxide (CO2), Total Volatile Organic Compound (TVOC), Nitrogen Oxides (NOx), Temperature, Relative Humidity, Light and Noise.

The WYND Halo Indoor Air Quality Monitor is a RESET Air Accredited Monitor (Grade B).

Air Quality Insights

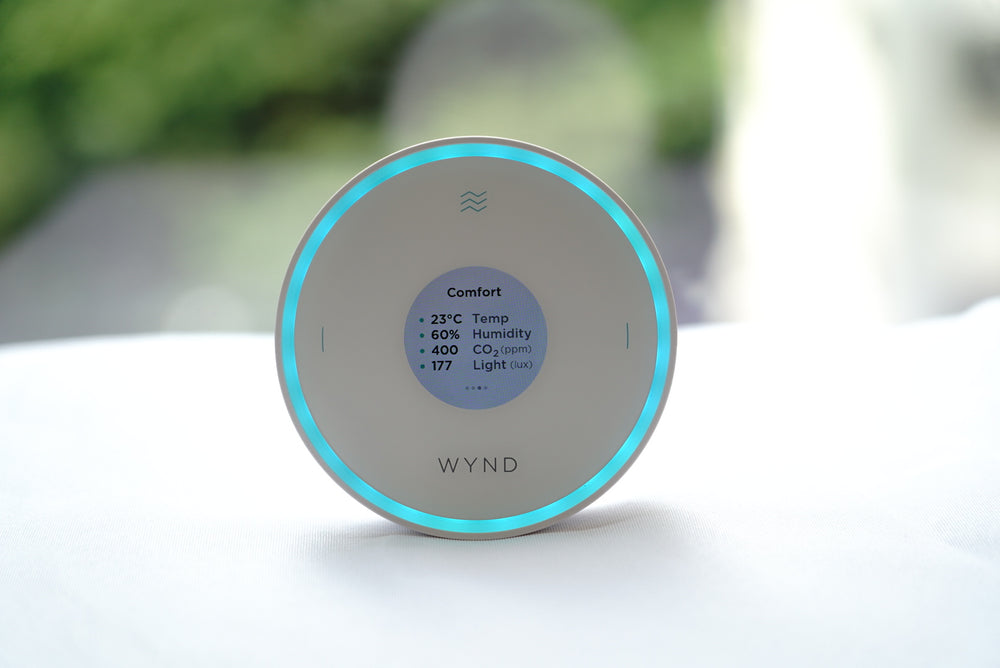

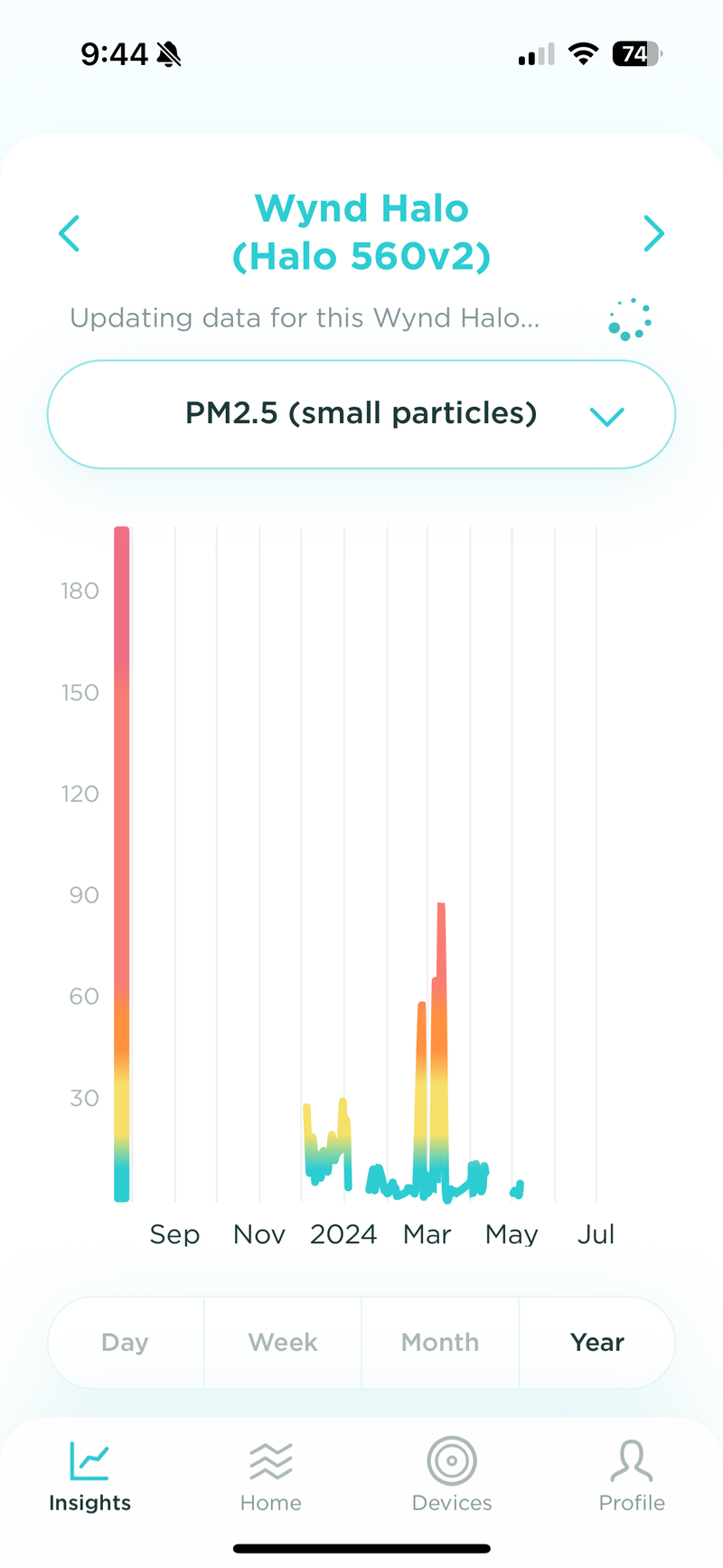

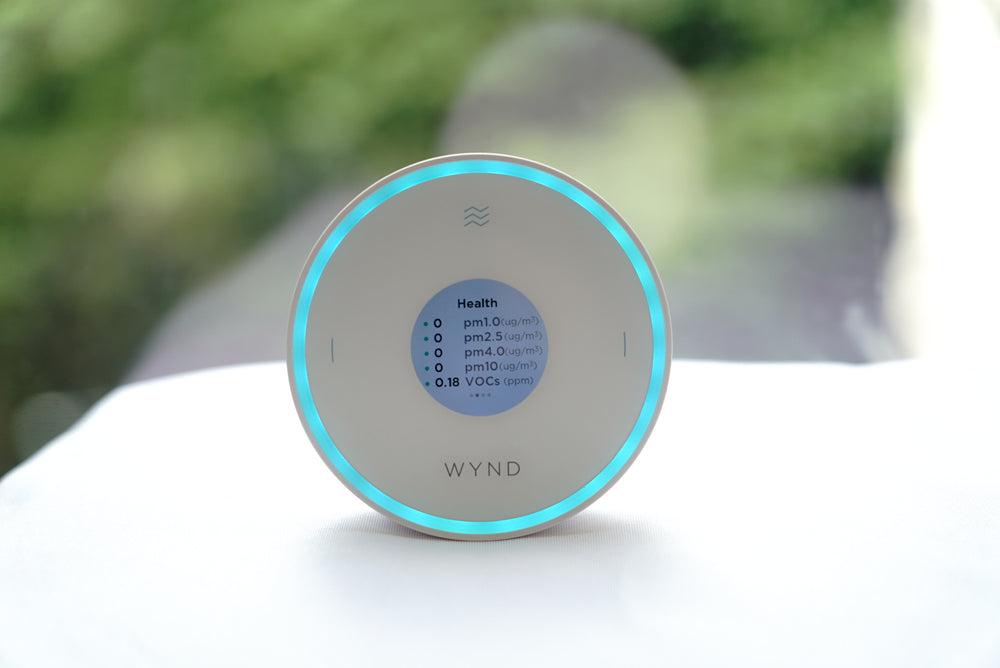

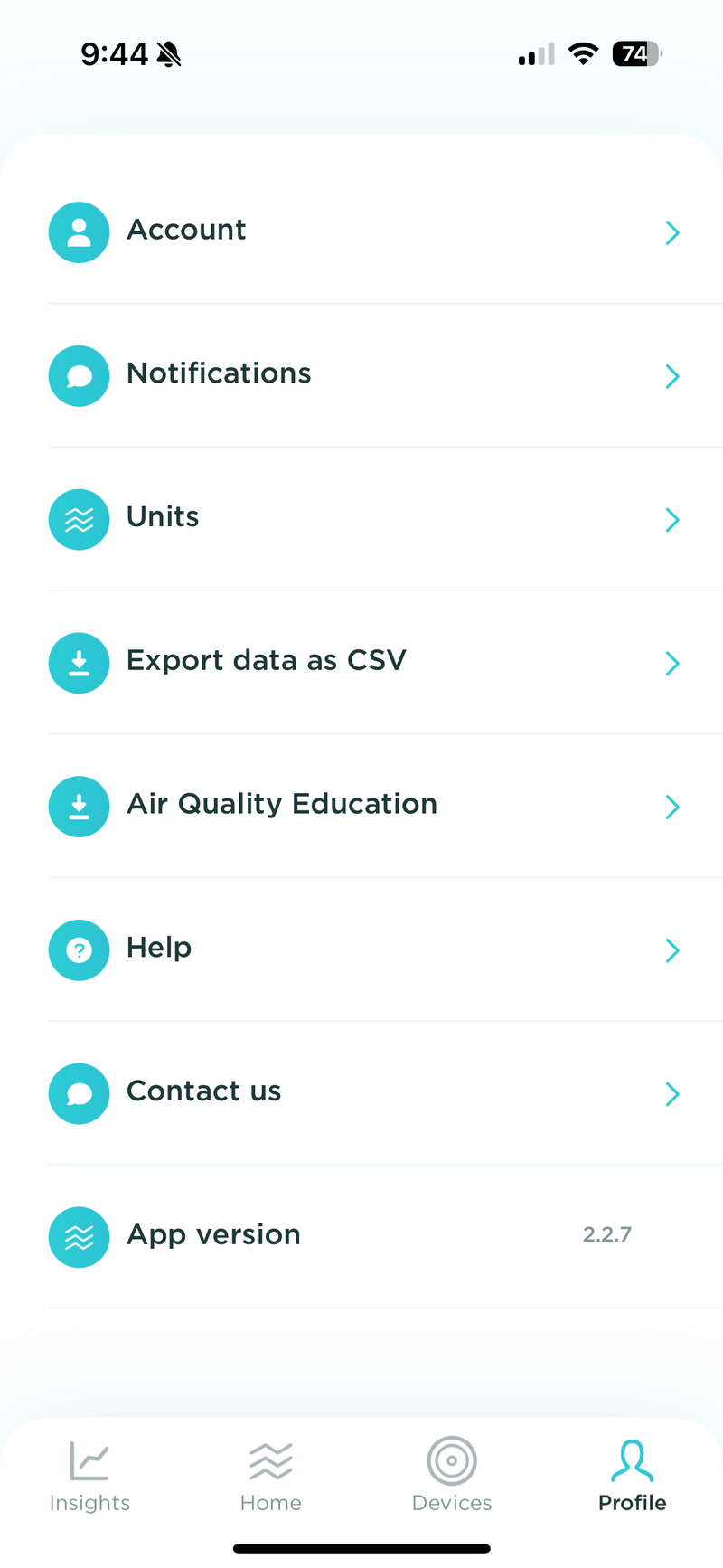

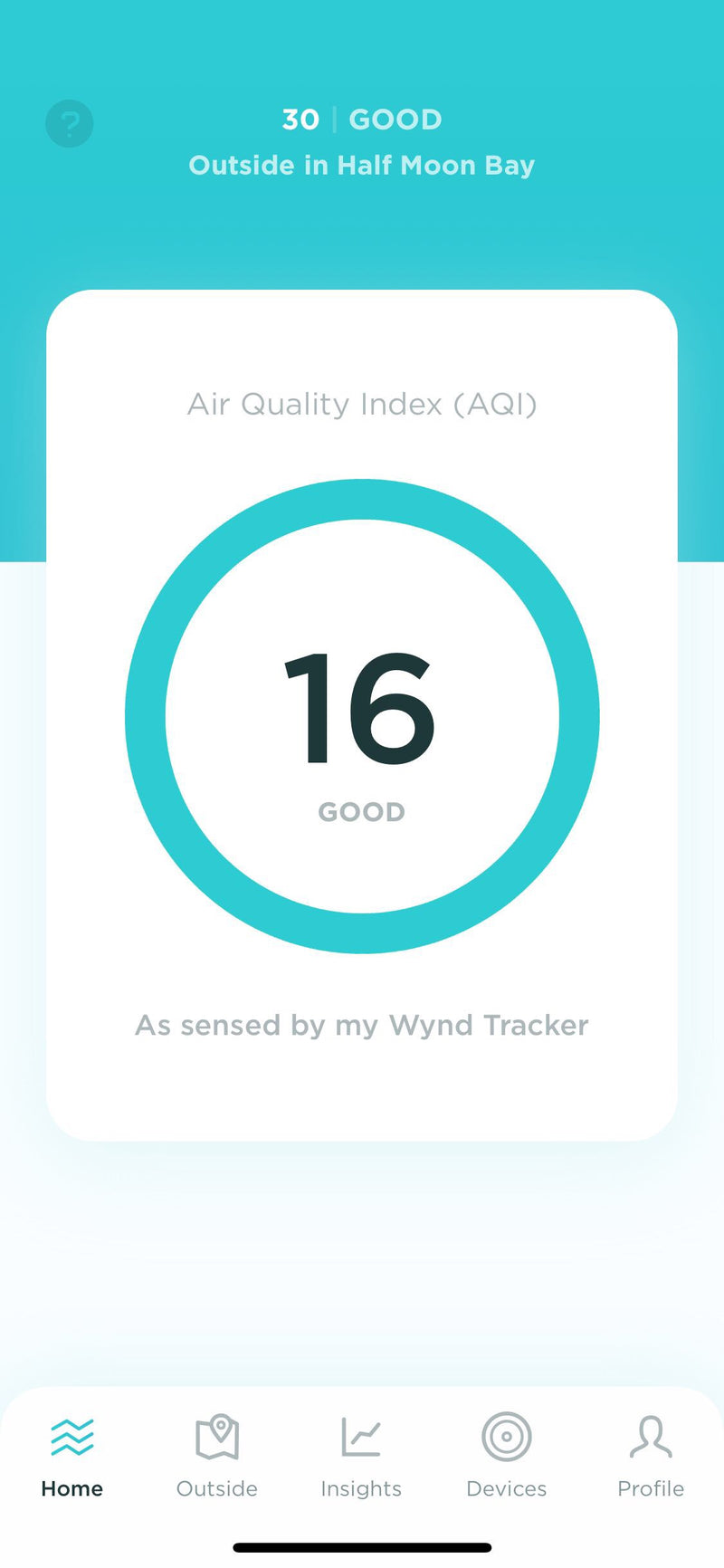

The WYND Halo comes with a front LED Display, allowing you to see the air quality data in real time without the need to connect App or dashboard. Our sensors detects the air and update at every second, providing the most accurate information. A WYND App is also available for user to check their air quality remotely, along with historical trend.

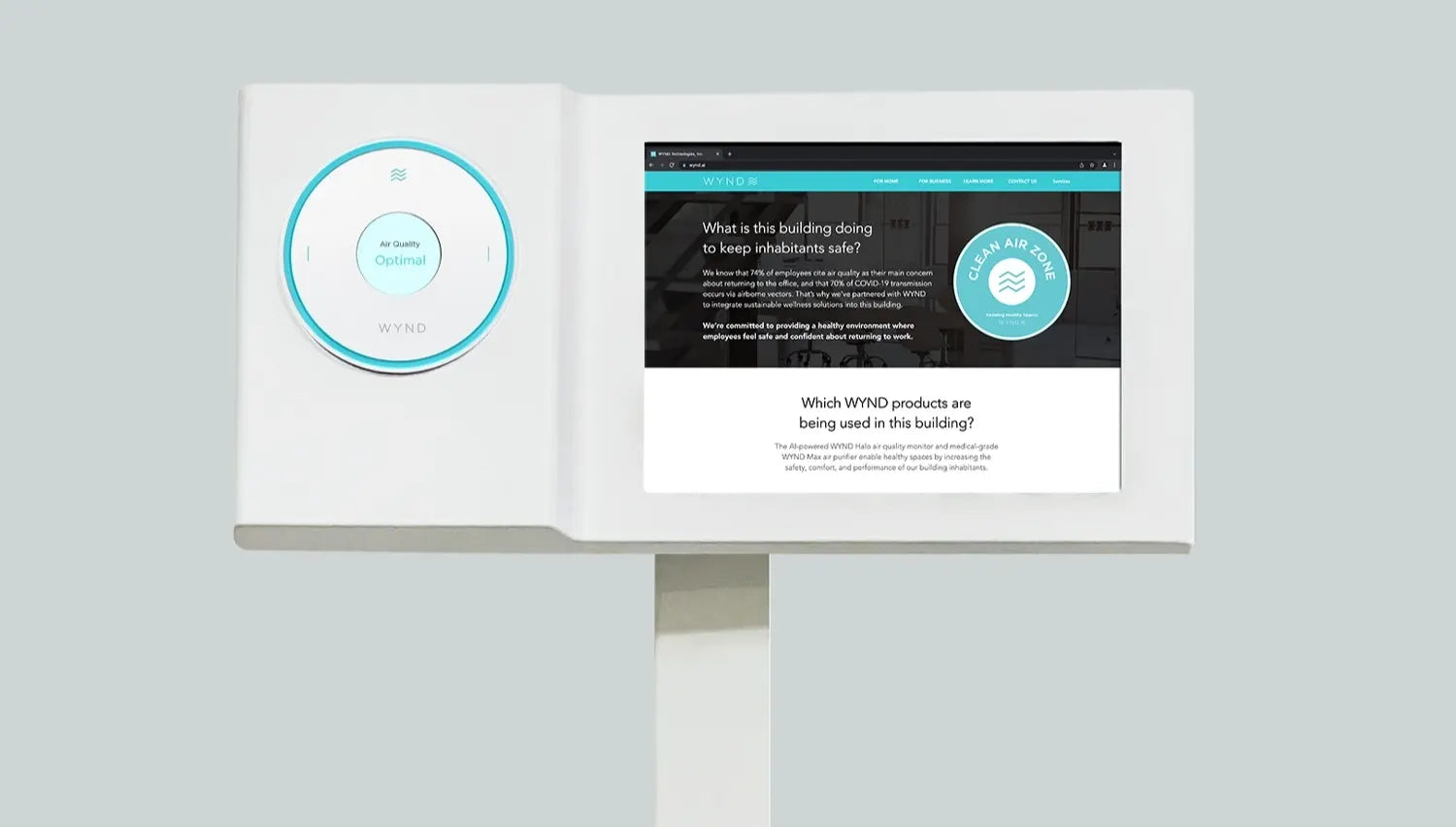

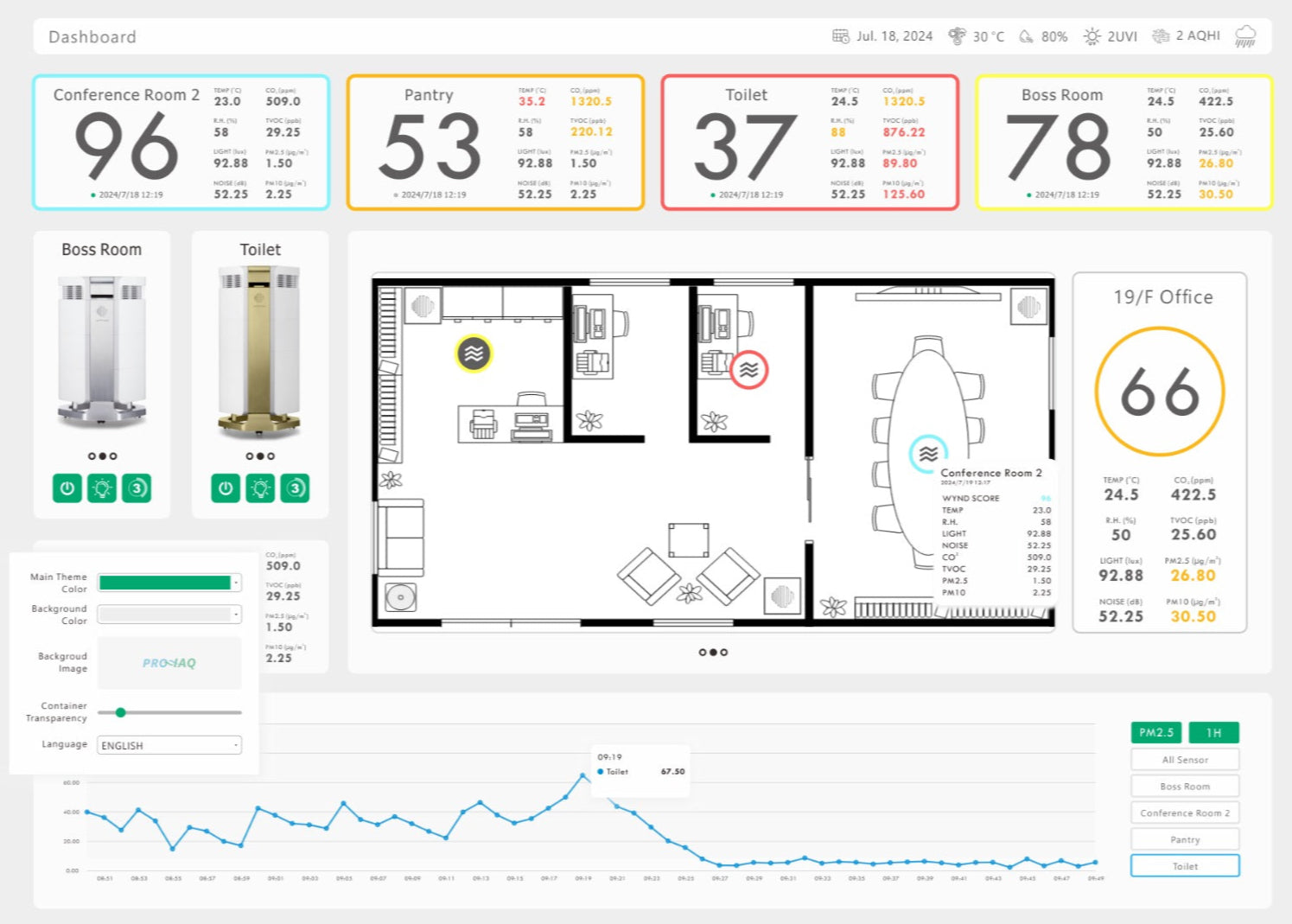

For enterprise user, a web-based IAQ Dashboard is available for detail data analysis with downloadable data at each minute interval. We can provide a Public URL platform for stakeholders to check the general IAQ data. API is also available to extract data and integrations to third party platform.

WELL, BEAM Plus Green Building IAQ

The WYND Halo Air Quality Monitor can be used to earn points and meet requirements for Green Building Certifications, including WELL, LEED, and BEAM Plus, along with other Smart Building and IoT Certification programs.

The WYND Halo Indoor Air Quality Monitor is a RESET Air Accredited Monitor (Grade B).  Our sensors meet the measurement and accuracy requirements for WELL, LEED, BEAM Plus and RESET Standard.

With continuous monitoring, front display screen, and additional measurement of light and noise, the WYND Halo can help you meet more requirements and earn more points than other IAQ monitors.

Specification

  • Measurement

    PM1.0, PM2.5, PM4.0, PM10, Carbon Dioxide (CO2), Total Volatile Organic Compound (TVOC), Nitrogen Oxides (NOx), Temperature, Relative Humidity, Light (Lux), Noise (db)

  • Measurement Interval

    Sensor measures at every second.

    LCD screen data update at every 5 seconds

  • Weight

    0.16kg

  • Dimension

    10cm x 2.3cm

  • Battery

    Lithium Battery, for 2 hours

  • Charging Type

    USB Type C

  • Connectivity

    WIFI 2.4G, APP for iOS and Android

Frequently Asked Questions

What IAQ Parameters can the WYND Halo detect?

The WYND Halo Indoor Air Quality Monitor can detect PM1, PM2.5, PM4, PM10, Total Volatile Organic Compound (TVOC), Carbon Dioxide (CO2), Nitrogen Oxides (NOx), Temperature, Relative Humidity, Light (Lux) and Noise (Db).

What Green Building Requirements can WYND Halo meet?

The WYND Halo Indoor Air Quality Monitor is a RESET Air Accredited Monitor (Grade B).

For WELL v2, WYND Halo can meet the preconditions A01, A03, and T01, as well as project points through A05, A06, A08, T06, and T07. Several of these features contain multiple parts, providing you with various options to meet the requirements. Using the Wynd Halo can earn up to 8 Project Points for WELL v2.

WYND Halo can also help meet the criteria under the WELL Performance Rating. Our WYND Halo can help you secure most of the features in the Indoor Air Quality category, and also cover some of those in “Thermal Conditions” and “Environmental Monitoring”, potentially earning you 11 of the necessary 21 points.

For BEAM Plus, the WYND Halo can help meet your Healthy Air, Illuminance Levels, and Background Noise requirements. Our sensors can continuously monitor IAQ parameters, light and sound level, potentially to help meet multiple requirements and earn more points.

Can the WYND Halo APP be used for iOS and Android system?

The WYND Halo APP have both iOS and Android version, and must be connected to WIFI 2.4G.

Is the WYND App free of charge to use? What is included?

The WYND APP is free of use.You can check the real time data , along with historical data based on graph.

What is the warranty on WYND Halo?

We included one year warranty for the WYND Halo. Our enterprise package also has extended warranty service available.

What is included in WYND Halo enterprise service?

For enterprise service, we have a customised IAQ Dashboard for our customers, with data storage up to one year and data provided at each one minute interval.  The data can be used for Green Building Certification.  We can also help create a Public URL for general stakeholders to view IAQ data.

Also, we have API function available, and IAQ data can be export to third party platform.  Our enterprise package also has extended warranty service available.
